ローラークラッシャー
- 容量： 10–300 tph
- 最大給餌サイズ: ≤150 mm
- ローラー直径： 300–1200 mm
- ローラー幅： 300–1000 mm
- モーター出力: 15–200 kW
- 退院調整： Mechanical / Hydraulic
- 応用： Roller crushers are widely used in coal, cement, mining, and building materials industries for secondary and fine crushing of medium and softer materials, especially where uniform product size and minimal over-crushing are required.

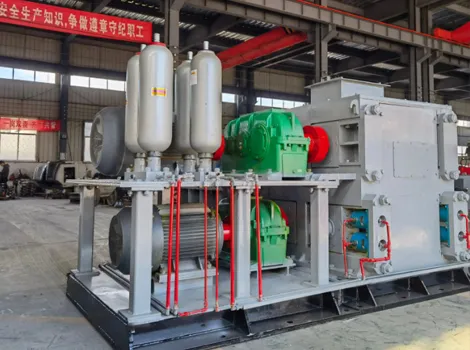

What Is a Roller Crusher?
A roller crusher is a crushing machine designed for secondary and fine crushing applications, widely used in mining, coal, cement, and building materials industries. It is known for its compact design, stable operation, and precise control of product size, helping you achieve consistent crushing performance and high-quality output in continuous production lines.
In practical applications, roller crushers are commonly used for medium and softer materials such as coal, limestone, shale, clinker, and certain industrial minerals. You can flexibly select double-roll or multi-roll configurations based on capacity requirements, material characteristics, and site conditions, achieving lower energy consumption, reduced maintenance costs, and improved overall efficiency.

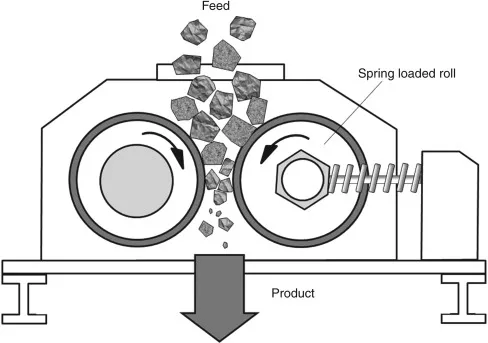

Roller Crusher Working Principle
When a roller crusher is in operation, material is fed into the gap between two or more counter-rotating rollers, where it is gradually crushed under continuous and stable compressive forces. The crushing process emphasizes uniform stress distribution, allowing the material to be compressed, reduced, and discharged smoothly, minimizing sudden impacts and ensuring stable performance during long-term continuous operation.
By adjusting the roller gap, surface design, and rotational speed, you can precisely control the degree of crushing and the final product size. This compression-based crushing method significantly reduces over-crushing, produces more uniform and well-shaped particles, and lowers energy consumption and wear, making it especially suitable for production lines that demand consistency, operational stability, and cost efficiency.
Roller Crusher for Sale

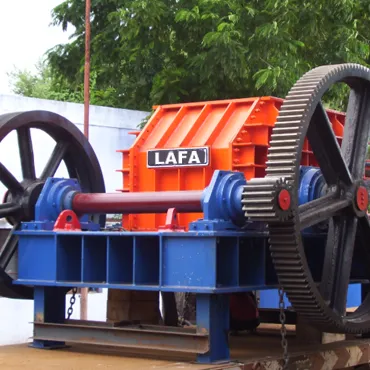

A single roll crusher features a simple structure and is suitable for primary or secondary crushing of low to medium hardness materials, often used in combined crushing and screening applications.

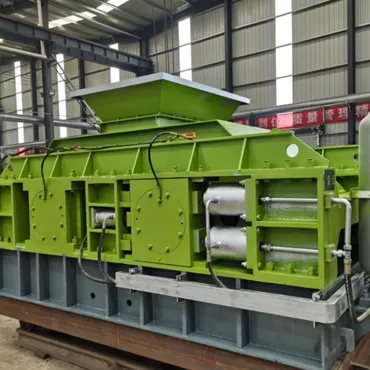

A double roller crusher uses two counter-rotating rollers to achieve stable and uniform crushing, ideal for secondary and fine crushing of coal, limestone, and cement raw materials.

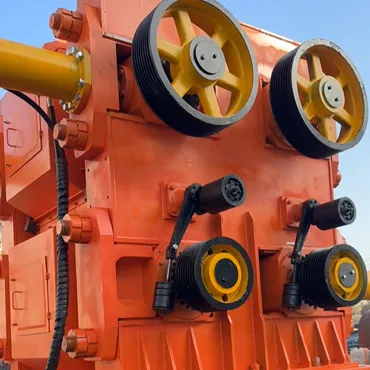

A four roller crusher adopts a two-stage crushing design within one machine, making it suitable for production lines requiring strict control of final product size.
A toothed roll crusher crushes materials through toothed roller engagement, making it ideal for wet or sticky materials such as coal, clay, and shale.

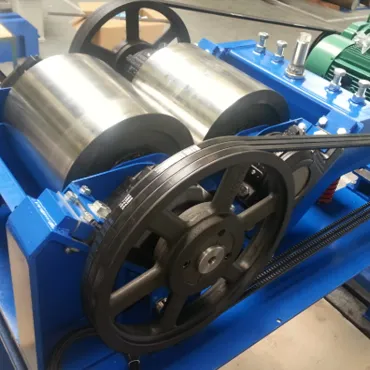

A smooth roll crusher applies compressive force with smooth roller surfaces, producing uniform product size with minimal fines, suitable for fine crushing applications.
A small roller crusher features a compact design and flexible installation, ideal for laboratory use, small-scale production lines, or space-limited crushing applications.
- Key Advantages of Roller Crusher
A roller crusher focuses not only on crushing efficiency but also on long-term stability, particle size control, and overall operating cost. With proven design and flexible configurations, it delivers reliable and consistent performance across a wide range of operating conditions.
精密な粒子サイズ制御
By adjusting the roller gap and selecting appropriate roller configurations, you can achieve consistent product size while minimizing over-crushing and recirculation.
Stable and Continuous Performance
The compression-based crushing mechanism ensures uniform load distribution, reduced vibration, and smooth operation, making it ideal for continuous industrial applications.
Lower Energy Consumption and Operating Costs
Compared with impact-based crushers, roller crushers require less energy for the same throughput, helping you reduce energy and maintenance costs throughout the equipment lifecycle.
Compact Design with Easy Maintenance
The simple structure and fewer wear parts allow faster maintenance and shorter downtime, improving overall equipment availability.
Flexible Configuration for Different Materials
With options such as smooth rolls, toothed rolls, and multi-roll arrangements, roller crushers can handle a wide range of material properties and operating conditions.
Ideal for Applications Requiring High Product Consistency
For projects where tight particle size distribution and controlled fines are critical, roller crushers deliver predictable and reliable crushing results.
関連製品
You should consider material hardness, moisture content, capacity requirements, desired product size, and site conditions to select the suitable model and configuration.
The price varies depending on model, capacity, and configuration. Contact us for a detailed quote.
Look for experience, product range, R&D capability, customization options, after-sales support, and international project experience. Selecting a manufacturer with global project expertise reduces installation and operational risks.
Roller crushers focus on compression, providing lower energy consumption, uniform particle size, and minimal fines, ideal for continuous, high-consistency production. Jaw crushers are best for primary crushing, while impact crushers suit mixed hardness materials.
Key details include material type and hardness, feed size, production capacity, desired product size, site conditions, and special functional requirements. This ensures the manufacturer can provide the best customized solution.
