Jaw Crusher for Sale
- Capacidade: 50–1,000 tph
- Max. Feed Size: 200–1,500 mm
- Tamanho da descarga: 10–300 mm
- Potência do motor: 30–400 kW
- Aplicativo: Jaw crusher is widely used in cement plants, mining, quarrying, and aggregate production lines as primary crushing equipment. It is suitable for crushing limestone, granite, basalt, cement clinker, and various hard and medium-hard ores. With stable performance and large feed capacity, jaw crusher provides reliable material preparation for downstream crushing and grinding systems.

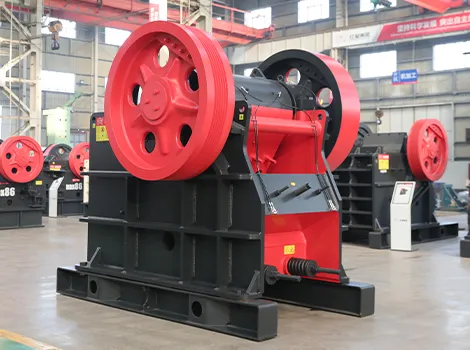

What Is a Jaw Crusher?
A jaw crusher is a primary crushing machine widely used in mining, aggregate processing, and cement production lines. It is mainly applied for the first stage of size reduction of large feed materials, including limestone, granite, basalt, cement clinker, and various medium-to-hard ores, making it one of the most common and fundamental types of crushers.
With its reliable structure, stable operation, and high processing capacity, the jaw crusher plays a critical role in industrial crushing systems. It provides consistent and uniform material preparation for downstream crushing, screening, and grinding processes, supporting efficient and continuous operation in both new installations and retrofit projects.
Working Principle of Jaw Crusher Machine
A jaw crusher operates by forming a crushing chamber between a fixed jaw plate and a moving jaw plate. After material enters the chamber through the feed opening, it is subjected to continuous compressive forces generated by the relative movement of the two jaw plates. As the crusher runs, the material is repeatedly compressed, fractured, and reduced in size, making this compression-based crushing process especially effective for large, hard, and abrasive materials.
During continuous operation, the material experiences progressive crushing from the upper part of the chamber to the lower discharge area. Larger particles are crushed first, while smaller particles move downward and are eventually discharged once they meet the required size. By adjusting the discharge opening, the final product size can be precisely controlled to suit different process requirements. This stable and adjustable crushing mechanism allows jaw crushers to perform reliably in mining operations, cement plants, and aggregate production lines.
Different Types of Jaw Crusher

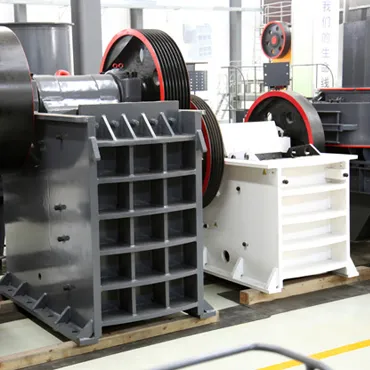

Designed for laboratory and small-scale testing, it allows you to crush rock and ore samples in a controlled manner, supporting material analysis and research applications.

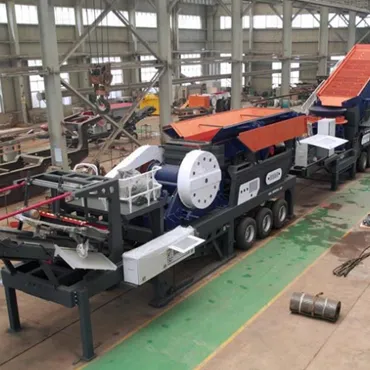

Ideal for projects requiring mobility, it allows you to deploy crushing equipment directly on-site, reducing material transportation and improving operational efficiency.

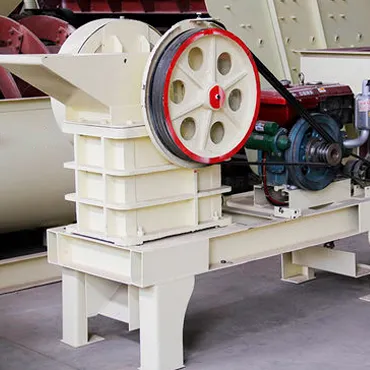

Compact in size and easy to install, it is suitable for low-capacity applications or limited spaces, offering an economical solution for basic crushing needs.

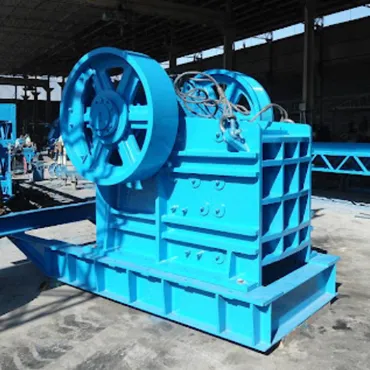

Used as the first stage of crushing, it handles large feed materials efficiently and provides consistent feed for downstream crushing and screening processes.

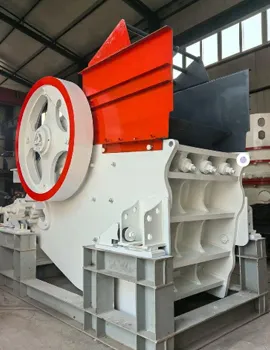

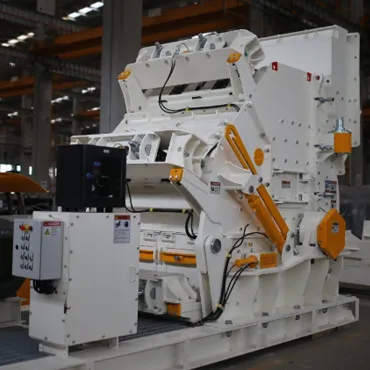

Applied after primary crushing, it further reduces material size and helps achieve more uniform output for higher production requirements.
Designed for versatile applications, it adapts to a wide range of materials and operating conditions, delivering stable and reliable crushing performance across different projects.
- Jaw Crusher Parts
- Advantages of Jaw Crusher

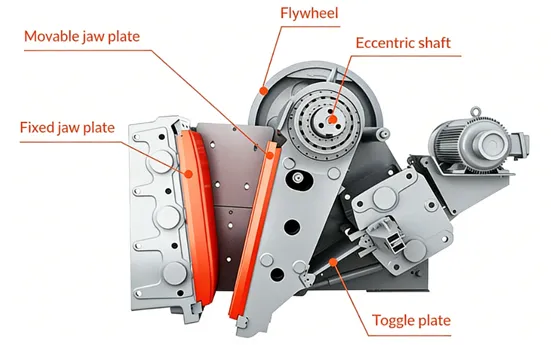

Every jaw crusher part you choose directly affects your equipment performance and service life. From wear-resistant jaw plates to precision-engineered bearings and eccentric shafts, these key components help you achieve efficient crushing, minimize downtime, and ensure reliable operation under demanding working conditions.
- Fixed Jaw Plate: The fixed jaw plate is mounted on the crusher frame and forms one side of the crushing chamber. It supports and holds the material during crushing and works together with the moving jaw plate to apply compressive force.
- Moving Jaw Plate: The moving jaw plate is responsible for applying crushing pressure to the material. Its continuous movement against the fixed jaw plate allows efficient size reduction of large and hard materials.
- Pitman: The pitman connects the moving jaw plate to the drive system and transfers motion from the eccentric shaft, enabling the reciprocating movement required for crushing.
- Eccentric Shaft: The eccentric shaft is a core rotating component that generates the motion of the moving jaw. Its strength and precision directly affect crusher performance and operational stability.
- Toggle Plate: The toggle plate supports the moving jaw and helps control the discharge opening. It also plays a protective role by absorbing excessive load during operation.
- Toggle Seat: The toggle seat supports the toggle plate and ensures stable contact between components, contributing to smooth crusher operation.
- Flywheel: The flywheel stores rotational energy and helps maintain smooth and balanced operation, reducing vibration during crushing.
- V-Belt: The V-belt transmits power from the motor to the eccentric shaft, ensuring stable and efficient power transfer.
- Bearings: Bearings support rotating components and reduce friction, enabling smooth operation under heavy load and extending service life.
- Crusher Frame: The crusher frame is the main structural component of the jaw crusher. It provides overall support and rigidity, ensuring long-term stability under high crushing forces.
When you are looking for a reliable, efficient, and versatile primary crushing solution, a jaw crusher offers stable performance and long-term operational reliability. With its robust design and proven application experience, it helps you achieve efficient production while reducing overall operating costs across different working conditions.
Powerful Primary Crushing Capability
You can efficiently process large feed materials, even high-hardness and high-strength rocks, ensuring reliable primary crushing for downstream processes.
Robust Structure and Reliable Operation
With a strong and durable design, the jaw crusher operates stably under heavy loads and continuous working conditions, helping you reduce downtime and extend service life.
Wide Application Range and High Adaptability
Whether handling ores, limestone, or cement clinker, the jaw crusher adapts well to various materials and operating conditions across different projects.
Easy Maintenance and Low Operating Cost
Its practical design allows easier maintenance and wear-part replacement, helping you minimize downtime and reduce overall operating costs.
Excellent System Compatibility
The jaw crusher integrates smoothly with different crushing and screening systems, enabling you to build an efficient and stable production line.
Produtos relacionados
When selecting jaw crusher manufacturers, you should focus on manufacturing experience, technical capability, project references, and after-sales support. Manufacturers with proven global projects are more likely to deliver reliable equipment and long-term service.
The jaw crusher price mainly depends on model size, capacity, feed size, configuration, and customization requirements. Since project conditions vary, pricing is usually evaluated based on your specific application.
Jaw crusher sizes range from small laboratory and compact units to large-scale machines for mining and cement plants. Selection depends on feed size, capacity requirements, and site conditions.
The construction of a jaw crusher mainly includes the frame, fixed and moving jaw plates, eccentric shaft, flywheel, bearings, and adjustment mechanisms. These components ensure stable operation under heavy-duty conditions.
Yes. Jaw crushers can be integrated with cone crushers, impact crushers, and screening equipment to form complete crushing and processing lines.
