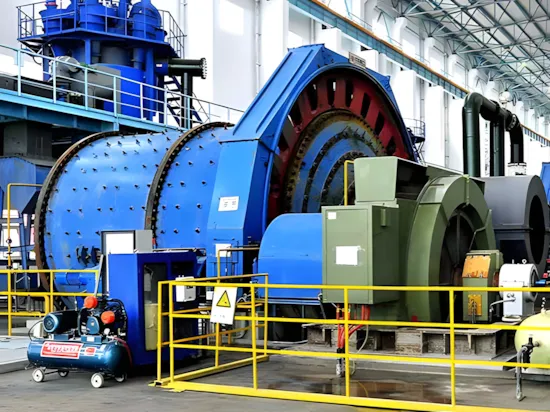

Moinho de bolas com varredura de ar
- Capacidade: 1–50 T/H
- Potência do motor: 30–250 kW
- Tamanho da ração: ≤ 25 mm
- Qualidade da saída: 50–300 μm (ajustável)
- Aplicativo: Air Swept Ball Mills are essential in the cement industry for raw meal and coal grinding. It is also widely used in thermal power plants for pulverized coal preparation, as well as in other industries requiring large-scale dry grinding, such as non-metallic mineral processing.

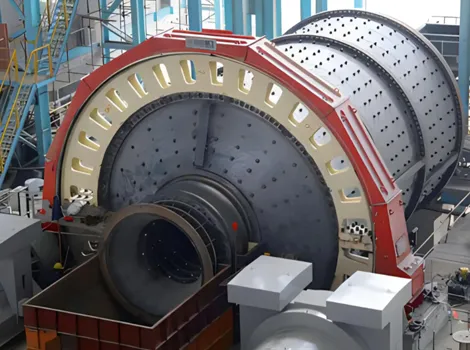

What is an Air Swept Ball Mill?
An air swept ball mill is a type of ball mill specifically designed for continuous dry grinding, named for its unique discharge method: using high-speed airflow to “sweep” the ground material out of the mill. The high-speed air not only acts as a transport medium but also simultaneously dries the raw material during grinding, achieving highly efficient integrated processing. The mill pulverizes materials efficiently through the continuous impact and friction of the grinding media. With a compact and versatile design, it is particularly suitable for large-scale dry preparation of cement raw meal, coal powder, and other non-metallic minerals. Due to its high discharge efficiency and uniform grinding, the air swept ball mill is widely used in cement, mining, chemical, and metallurgical industries, making it a key choice for high-efficiency dry grinding processes.
Structure and Working Principle of Air Swept Ball Mill
The Air Swept Ball Mill features advanced compartmentalized cylinder design and a hot air circulation system, enabling efficient graded grinding and drying of materials. Its key components work in harmony to ensure stable operation and effective powder collection, making it an ideal choice for dry grinding applications.
Structure of Air Swept Ball Mill
The air swept ball mill system is composed of multiple precisely coordinated key components. Its core structure includes the feeding device, rotating cylinder, wear-resistant liners, grinding media, discharge air duct, and a high-efficiency dynamic classifier. The cylinder features specially designed partition plates, dividing the mill into coarse and fine grinding chambers to ensure graded grinding. The hot air system, composed of a high-temperature blower, ducting, and furnace, forms a closed airflow loop. Additionally, the system is equipped with a cyclone separator and bag filter, creating a complete material collection system and providing an efficient, stable foundation for dry grinding operations.
Working Principle of Air Swept Ball Mill
During operation, materials are continuously fed into the rotating cylinder through the feeding device. In the coarse grinding chamber, large particles are broken by the impact of lifted steel balls; in the fine grinding chamber, materials are further refined by smaller steel balls. Simultaneously, high-speed airflow generated by the hot air system is drawn in from the feed end, passing through the entire cylinder. This airflow not only carries out materials that meet fineness requirements but also effectively dries moist raw materials. The material-air mixture is sent to the dynamic classifier, where coarse particles return to the mill for further grinding, while qualified fine powder follows the airflow into the collection system, finally achieving gas-solid separation via the cyclone separator and bag filter to produce the finished product.
- Advantages of Air Swept Ball Mill
The Air Swept Ball Mill combines energy saving, high efficiency, and reliability, making your production faster, easier, and more cost-effective. Whether for large-scale dry grinding or precise fine powder processing, it delivers consistent, high-quality results to boost your production line’s performance.
Economia de energia
The Air Swept Ball Mill uses a special airflow system, reducing energy use by over 30% compared to traditional mills. Hot air and waste heat recovery make material drying more efficient, with energy utilization up to 85%.
High Production Efficiency
The mill combines crushing, grinding, classification, and collection in one system. Material stays in the mill half as long, dual-chamber structure and special liners make grinding more uniform, increasing single-machine capacity by around 40%. Smart control automatically adjusts grinding media and airflow for peak performance.
Excellent Product Quality
The turbine classifier allows particle size adjustment, ensuring uniform and stable output. Hot air circulation thoroughly dries the material (moisture ≤0.5%) and maintains high purity (up to 99.8%), with no cross-contamination between materials.
Reliable and Durable
Key parts use wear-resistant alloys with a lifespan of up to 30,000 hours. Fully sealed design and intelligent monitoring track bearing temperature and vibration for predictive maintenance. Explosion-proof certified design ensures safe operation in combustible dust environments, with unplanned downtime less than 8 hours per year.
Produtos relacionados
It introduces hot air as both a carrier and a drying medium. During operation, the hot air (with precisely controlled temperature) flows through the mill, instantly removing moisture from the material while carrying the ground fine powder to the classification system. This integrated design eliminates the need for a separate dryer.
The Air Swept Ball Mill typically reduces specific energy consumption by 25-35% compared to conventional two-stage grinding systems. This is achieved through its integrated grinding-drying process and optimized airflow design, which minimizes pressure drop and recirculation losses.
Yes, the mill is designed with replaceable wear plates in critical areas and can be equipped with specialized lining materials for highly abrasive applications. For moist materials (up to 8% moisture), the integrated drying system can effectively handle them without pre-drying requirements.
The system achieves excellent particle size distribution control through its dynamic classifier, which can maintain product fineness between 80-500 μm with a narrow size distribution. The Blaine surface area can be controlled within ±50 cm²/g of the target value.
Multiple safety features include explosion vents, inert gas injection system, temperature monitoring points, and oxygen level control. The system is designed to meet ATEX standards for potentially explosive atmospheres.
